ASP.NET MVC - 檔案上傳的基本操作

做網站系統多半都會有檔案上傳的需求,而我也在 2012 年用了四篇文章的篇幅介紹如何使用「file-uploader」這個前端套件來完成一個檔案上傳的功能,

ASP.NET MVC上傳檔案,使用file-uploader : 基本操作
ASP.NET MVC上傳檔案,使用file-uploader : 進階操作 Part.1
ASP.NET MVC上傳檔案,使用file-uploader : 進階操作 Part.2
ASP.NET MVC上傳檔案,使用file-uploader : 進階操作 Part.3

不過這一系列的文章有使用「file-uploader」這個前端套件而且在後端的 Controller Action 操作也比較進階,並不適合給初學者參考,所以這邊整理一下有關 ASP.NET MVC 的檔案上傳基本操作方法。




單一檔案上傳

這個操作是最簡單也最為基本的操作,以下為 View 的內容,


@{
    ViewBag.Title = "Upload";
}

<h2>Upload</h2>
<hr />

<form action="@Url.Action("Upload")" method="post" enctype="multipart/form-data">
  <label for="file">Filename:</label>
  <input type="file" name="file" id="file" />
  <input type="submit" />
</form>

再來就是 Controller 的 Action 方法,


public ActionResult Upload()
{
    return View();
}

[HttpPost]
public ActionResult Upload(HttpPostedFileBase file)
{
    if (file.ContentLength > 0)
    {
        var fileName = Path.GetFileName(file.FileName);
        var path = Path.Combine(Server.MapPath("~/FileUploads"), fileName);
        file.SaveAs(path);
    }
    return RedirectToAction("Upload");
}

MSDN - HttpPostedFileBase 類別

在 Upload 的 Action() 裡,我們會以 HttpPostedFileBase 類別來接前端所上傳的檔案,而接收檔案的參數名稱為「file」,所以在前端 View 表單中所使用的 file input tag 的 Name 也必須要為「file」,如此後端才能收到上傳的檔案,

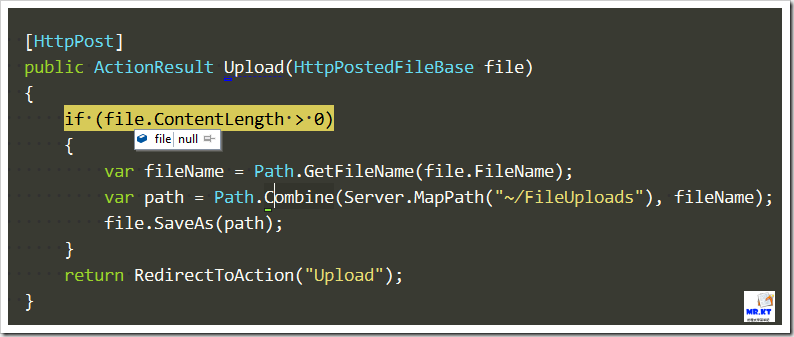

接著我們下個中斷點來觀察 Action 方法,

在 Action 內可以對 file 進行判斷是否有上傳檔案,當沒有上傳檔案時 file 為 null,


上面的程式並沒有對於「未上傳檔案」的狀況做另外處理,所以當 file 為 null 時就會出現 exception,

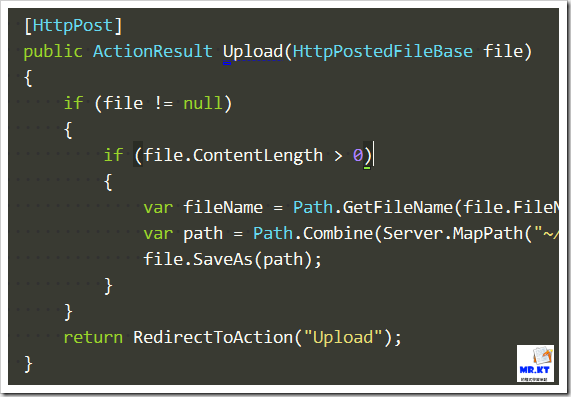

所以可以先進行是否有檔案上傳的判斷,


而當有檔案上傳時,就可以在 file 中取得相關的資訊,其中 ContentLength 就是檔案大小,


上傳的檔案是存放到我們所指定的位置裡,





多個檔案上傳

而要處理多個檔案上傳該怎麼做呢?

View

在 View 的表單中放了三個 File Input Tag,各自的 id 都不同,id 對於傳到後端 controller 並不會有影響,有影響的是 name,所以三個 File Input Tag 的 name 都是一樣的,


Controller

後端 controller Action 方法的接收參數的型別使用的是 IEnumerable<HttpPostedFileBase>,跟上傳單一個檔案一樣,後端 action 方法接收的參數名稱要跟 View 表單中上傳檔案欄位所使用的 name 一致,


而 Action 方法內在以 foreach 方式一一的對上傳檔案做處理


觀察上傳檔案的執行

我們在 View 有放上三個 File Input Tag,但是故意第二個上傳檔案的欄位不選擇檔案,所以可以在下圖裡看到在 files 的第二個 HttpPostedFileBase 為 null,






為什麼是用 HttpPostedFileBase 而不是從 FormCollection 取得上傳的檔案

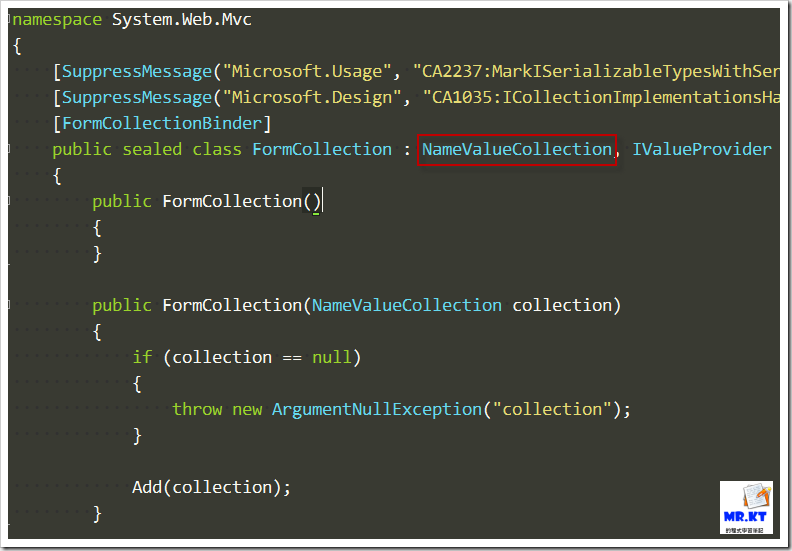

首先要先認識一下 FormCollection:MSDN - FormCollection 類別

FormCollection 類別是繼承 NameValueCollection 類別,是以索引鍵或是所引來存取值,而前端表單有其他 input tag 時,當 POST 表單資料到後端的 Action 方法,我們在 FormCollection 是使用 Input Tag 欄位的 Name 來取得相對應的值,而雖然 File Input 也是存在於表單當中,卻無法在 FormCollection 中取得上傳檔案的值,如下所示,


MSDN - NameValueConnection 類別

我前面有講到 FormCollection 是繼承 NameValueCollection 類別,而 NameValueCollection 是 String 索引鍵和 String 值的集合,表單裡所上傳的檔案並不是 String,而是檔案,不同於表單其它 input tag 的內容值可以用 String 表示。


在 ASP.NET MVC 裡對於檔案上傳有另外預設的 value provider「HttpFileCollectionValueProvider」,

MSDN - HttpFileCollectionValueProvider 類別

這個不太好解釋,當網頁含有檔案上傳的表單 POST 到 Controller 時,有關檔案的處理會交由 HttpFileCollectionValueProvider,而這個 Value Provider 內就會從 ControllerContext 的 HttpContext Request File 裡去找檔案,當有找到檔案後就會把檔案以 HttpPostedFileBase 類別放到 HttpPostedFileBase[] 裡,最後再回到 Controller Action 方法,接著我們再去取得檔案,關於這一段可以直接看以下的原始檔內容:

// Copyright (c) Microsoft Open Technologies, Inc. All rights reserved. See License.txt in the project root for license information.
using System.Collections.Generic;
using System.Globalization;
using System.Linq;
namespace System.Web.Mvc
{
    public sealed class HttpFileCollectionValueProvider : DictionaryValueProvider<HttpPostedFileBase[]>
    {
        private static readonly Dictionary<string, HttpPostedFileBase[]> _emptyDictionary = new Dictionary<string, HttpPostedFileBase[]>();
        public HttpFileCollectionValueProvider(ControllerContext controllerContext)
            : base(GetHttpPostedFileDictionary(controllerContext), CultureInfo.InvariantCulture)
        {
        }
        private static Dictionary<string, HttpPostedFileBase[]> GetHttpPostedFileDictionary(ControllerContext controllerContext)
        {
            HttpFileCollectionBase files = controllerContext.HttpContext.Request.Files;
            // fast-track common case of no files
            if (files.Count == 0)
            {
                return _emptyDictionary;
            }
            // build up the 1:many file mapping
            List<KeyValuePair<string, HttpPostedFileBase>> mapping = new List<KeyValuePair<string, HttpPostedFileBase>>();
            string[] allKeys = files.AllKeys;
            for (int i = 0; i < files.Count; i++)
            {
                string key = allKeys[i];
                if (key != null)
                {
                    HttpPostedFileBase file = HttpPostedFileBaseModelBinder.ChooseFileOrNull(files[i]);
                    mapping.Add(new KeyValuePair<string, HttpPostedFileBase>(key, file));
                }
            }
            // turn the mapping into a 1:many dictionary
            var grouped = mapping.GroupBy(el => el.Key, el => el.Value, StringComparer.OrdinalIgnoreCase);
            return grouped.ToDictionary(g => g.Key, g => g.ToArray(), StringComparer.OrdinalIgnoreCase);
        }
    }
}

所以當檔案上傳後在 Controller 的 Action 方法去處理時,就必須要使用 HttpPostedFileBase 來取得檔案;有關以上 HttpFileCollectionValueProvider 的原始碼以及其他類別原始碼有興趣的朋友可以自行去下載 ASP.NET MVC 原始碼來研究。




這篇先介紹簡單的單一檔案與多個檔案上傳的應用操作,並且在後面說明了為何在 FormCollection 裡無法取得上傳檔案的值而為什麼要使用 HttpPostedFileBase 才能取得上傳檔案的原因,希望能夠幫助對此有疑問的朋友。



參考連結:

Phil Haack - Uploading a File (Or Files) With ASP.NET MVC

延伸連結:

CodePlex -  ASP.NET WebStack (下載 ASP.NET MVC 4 原始碼)



以上
